Product Description

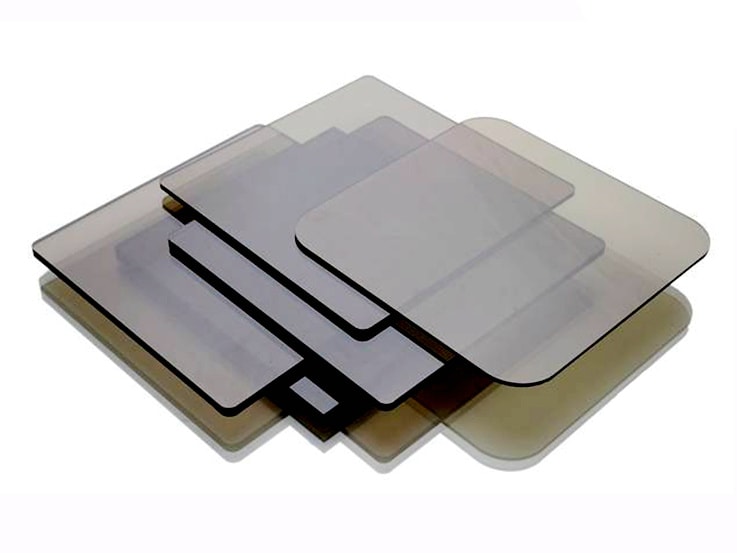

Solid polycarbonate sheet offers high light transmission, excellent impact resistance, and extraordinary durability. It is virtually unbreakable as 250-300 times stronger than glass, 20-30 times stronger than acrylic, 25 times stronger than tempered glass. Therefore, it is widely known as polycarbonate glazing sheet, polycarbonate sheeting, polycarbonate panels, unbreakable plastic sheets, etc.
As the ideal alternative to glass, acrylic, tempered glass, solid polycarbonate sheets are used for wide applications including safety & security, engineering, construction & architecture, decoration, medical & healthcare, transportation, and daily necessities.
Products Specification
Thickness (mm) | Width (mm) | Length (m) |
---|---|---|
1mm, 1.5mm | 1000mm, 1220mm, 2100mm, 2650mm | 2.44m, 3m, 5.8m, 12m, 30m |
2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm | 1000mm, 1220mm, 2100mm, 2650mm | 2.44m, 3m, 5.8m, 12m |
8mm, 10mm, 12mm, 15mm | 1000mm, 1220mm, 2100mm, 2650mm | 2.44m, 3m, 5.8m |
16mm, 18mm, 20mm | 1000mm, 1220mm, 2100mm | 2.44m, 3m, 5.8m |
25mm, 30mm, 35mm | 1220mm | 2.44m |
40mm, 45mm, 50mm | 1220mm | 2.44m |
Model | Description |
---|---|
UVFPC-SO | Stabilized UV protective layer for general purpose |
UVFPC-SO-U1 | The co-extruded UV coating on one side for outdoor application |
UVFPC-SO-U1A | The co-extruded UV coating on the outside surface, the anti-condensation coating on the inside surface for outdoor application |
UVFPC-SO-U2 | The co-extruded UV coating on both sides for outdoor application |
- The warranty for all polycarbonate sheet with UV coating will be 10 years;
- 15 years of warranty is optional, send email to [email protected] for the detail;
Type | Colors description |
---|---|
Transparent | Clear, Bronze, Red, Blue, Green, Solar Grey, Lighter Blue, Lighter Green |
Translucent | White Opal, White Diffuser, Yellow, Red, Mint Green, White Opal |
Opaque | Black, Yellow, Dark Blue, Cream, Dark Grey, Dark Brown |
Property | Test Method | Testing Condition | Unit | Value |
---|---|---|---|---|
Density | D-792 | g/cm3 | 1.2 | |
Heat Deflection Temperature | D-648 | Load: 1.82 MP | °C | 135 |
Short Term Service Temperature | °C | from -50 to +130 | ||
Long Term Service Temperature | °C | from -40 to +100 | ||
Coefficient of Linear Thermal Expansion | D-696 | mm/m °C | 0.065 | |
Thermal Conductivity | C-177 | W/m K | 0.21 | |
Tensile Strength at Yield | D-638 | 10 mm/min | Mpa or N/mm² | >65 |
Tensile Strength at Break | D-638 | 10 mm/min | MPa or N/mm² | >60 |
Elongation at Yield | D-638 | 10 mm/min. | % | 6 |
Elongation at Break | D-638 | % | >95 | |
Tensile Modulus of Elasticity | D-638 | 1 mm/min | MPa | 2350 |
Flexural Strength | D-790 | 1.3 mm/min. | MPa | 100 |
Flexural Modulus | D-790 | 1.3 mm/min. | MPa | 2600 |
Impact Falling Weight | ISO 6603/1 E50 | 3mm sheet | J | 158 |
Light Transmission | D-1003 | % | 82 – 92 | |
Haze | D-1003 | % | <0.5 | |
Flammability Rate | UL 94 | V-2 |
- Default third-party testing organization is SGS;
- The fire rating is V2/UL94 for standard solid polycarbonate sheet, want to know V0 fireproof polycarbonate sheet;
