Honeycomb Polycarbonate Sheet
Product Description

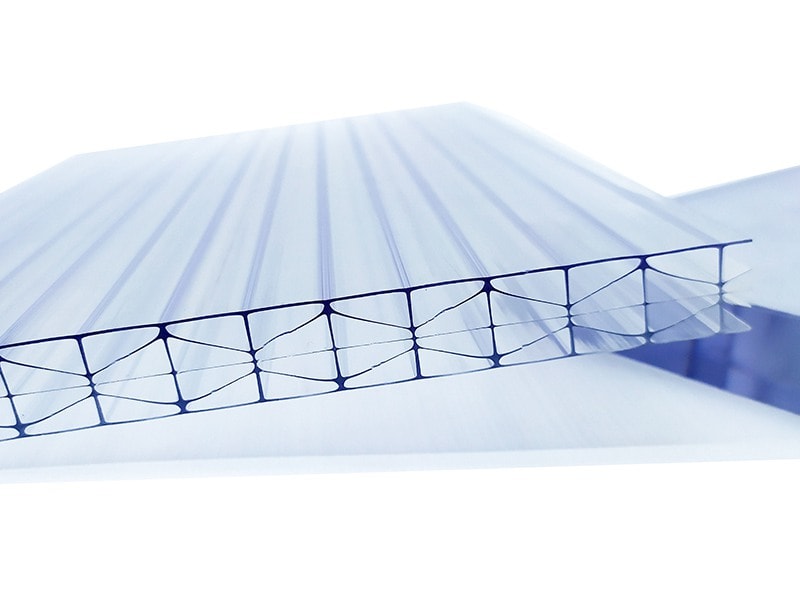

Honeycomb Polycarbonate sheet is one of the topic multiwall polycarbonate sheets. As the best plastic honeycomb panels, it offers a honeycomb type profile that creates an insulating air space, therefore, honeycomb polycarbonate panel offers a really high thermal isolation characteristic and high impact resistance. The clear honeycomb polycarbonate sheet is high transparency from 50%-70%.
Honeycomb Polycarbonate has really good performance under the hurricane, hailstone, heavy snowfall, sandstorm weather. It is used for roofing applications, for example, greenhouse roofing sheet, skylight roof of workshop, sunroom, etc.
Model | Thickness | U-Value (W/m²·°K) | Light Transmission, clear, % | Width 700 (mm) | Width 1050 (mm) | Width 2100 (mm) |
---|---|---|---|---|---|---|
UVMPC-HO-8 | 8 mm | 2.85 | 60 | ✔ | ✔ | ✔ |
UVMPC-HO-10 | 10 mm | 2.16 | 58 | ✔ | ✔ | ✔ |
UVMPC-HO-12 | 12 mm | 1.98 | 57 | ✔ | ✔ | ✔ |
UVMPC-HO-14 | 14 mm | 1.74 | 55 | ✔ | ✔ | ✔ |
UVMPC-HO-16 | 16 mm | 1.56 | 53 | ✔ | ✔ | ✔ |
- Other Typical Dimensions are available, such as 4×8 ft, 2x3m;
- Max. Length is 12m;
- Custom width is available;
- Custom Polycarbonate is available;
- It is free to cut polycarbonate to size according to clients’ requirement;
Model | Description |
---|---|
UVMPC-HO-U1 | Standard Honeycomb Polycarbonate sheet with co-extruded UV protective on one side for outdoor application |
UVMPC-HO-U1A | Standard Honeycomb Polycarbonate sheet, the co-extruded UV protective on the outside, anti fog coating on the inside for agricultural applications like hothouse |
UVMPC-HO-U2 | Standard Honeycomb Polycarbonate sheet with co-extruded UV protective layers on two sides |
Physical Property | Testing Method | Unit | Value |
---|---|---|---|
Specific Gravity | D-792 | g/cm3 | 1.2 |
Light transmittance | D-1003 | % | >76 |
Heat deflection temperature (HDT) | D-648 | °C | 140 |
Service Temperature – Short term | °C | -50 to +120 | |
Service Temperature – Long term | °C | -40 to +100 | |
Impact falling dart | ISO 6603/1 | J | 40-400 |
Tensile Strength at Yield | D-638 | Mpa or N/mm² | >60 |
Tensile Strength at Break | D-638 | MPa or N/mm² | >65 |
Coefficient of Linear Thermal Expansion | D-696 | mm/m °C | 0.065 |
Thermal Conductivity | C-177 | W/m K | 0.21 |
Elongation at Break | D-638 | % | >100 |
Tensile Modulus of Elasticity | D-638 | MPa | 2400 |
Flexural Strength | D-790 | MPa | 100 |
Practical thermal expansion/contraction | mm/m | 3 |
Default third-party testing organization is SGS
Model | Clear | Bronze | White Opal | Green | Blue | Custom Color |
---|---|---|---|---|---|---|
UVMPC-HO-8 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
UVMPC-HO-10 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
UVMPC-HO-12 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
UVMPC-HO-14 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
UVMPC-HO-16 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Stadium Roofing
With the excellent impact resistance, multiwall polycarbonate sheet is the best choice for stadium roofing, even under the storm, hailstone, heavy snowfall, sandstorm, hurricane weather, and intense ultraviolet condition.
Skylight of wharehouse
Honeycomb polycarbonate sheet is lighter weight but high impact resistance, it is a great choice for the skylight.
