Embossed Polycarbonate Sheet

Product Description

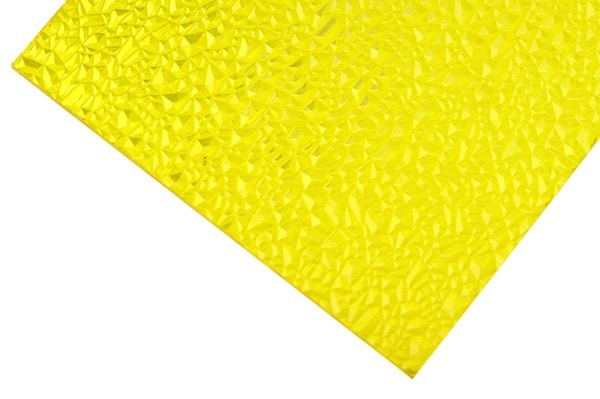

Embossed polycarbonate sheet is designed with a special pattern on one side and smooth on another side. Some people call it “prismatic polycarbonate sheet”, “textured polycarbonate sheet”, and “polycarbonate texture”. It is an excellent solution to applications where you require blurred vision and reduce glare light rays.

UVPLASTIC offers three types of surface textures including diamond pattern, prism pattern, orange peel pattern.

As the most popular plastic sheets, the embossed polycarbonate sheet is used widely for industrial glazing, lamps, and lanterns, privacy screens, shower screens, decorative panels, etc.

Products Specification

Thickness (mm)Width (mm)Length (mm)
3mm, 4mm, 5mm, 6mm, 8mm, 10mm1220mm, 2100mm, Custom Width2400mm, 5800mm, Custom Length

Note:

  • Custom Polycarbonate is available;
  • Free to polycarbonate cut to size;
  • Custom sizes are available;
TypeColors Description
TransparentClear, Brown, Bronze, Gary, Red, Blue, Lighter Blue, Green, Lighter Green
TranslucentBlack, White Opal, White Diffuser, Yellow, Red, Mint Green, White Opal
OpaqueBlack, White Opal, Yellow, Dark Blue, Red, Dark Grey, Dark Brown

Custom colors are available;

Physical PropertiesTesting MethodValueUnit
Specific GravityD-7921.2g/cm3
Tensile Strength at YieldD-638>60Mpa or N/mm²
Tensile Strength at BreakD-638>65MPa or N/mm²
Coefficient of Linear Thermal ExpansionD-6960.065mm/m °C
Thermal ConductivityC-1770.21W/m K
Elongation at BreakD-638>100%
Tensile Modulus of ElasticityD-6382400MPa
Flexural StrengthD-790100MPa
Fire ratingUL 94V2/
ModelDescription
UVFPC-EMTexture surface is on one side, stabilized UV protective layer for general purpose
UVFPC-EM-U1Texture surface is on one side, co-extruded UV protective layer on one side for outdoor application
UVFPC-EM-U2Texture surface is on one side, co-extruded UV protective layer on both sides for outdoor application
  • Privacy screens;
  • Light diffuser in architectural light fittings;
  • Conference room windows;
  • Conventional lighting;

Frequently Asked Question

They are the same products, but different names. They are the right material for lamps and lanterns.

Yes, UVPLASTIC can manufacture textured polycarbonate panel with light diffusion function, it can provide the soft and comfortable light.

UVPLASTIC is a leading manufacturer of textured polycarbonate sheet, the Min. thickness is 3mm, the Max. thickness is 20mm.

Yes, we can provide textured polycarbonate sheet with custom colors, the MOQ is 3 tons.

Yes. With more than 15 years of exprience, UVPLASTIC offers custom polycarbonate products accroding to drawings from clients, we can thermal forming textured polycarbonate to any shapes.
